HK Smart Cell and Smart Tower Automated Loading Systems

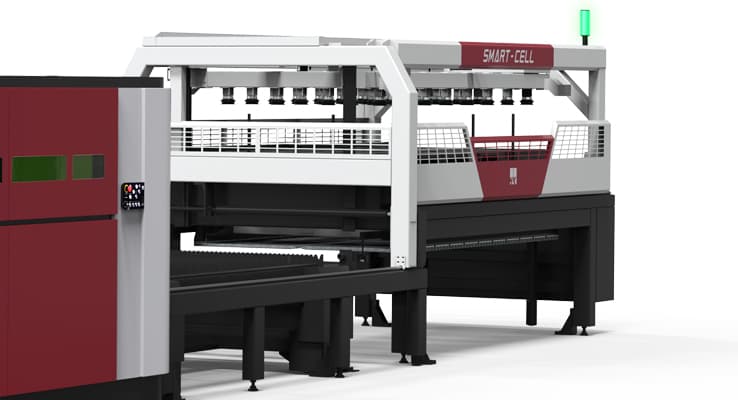

Smart Cell Auto Loading & Unloading System
Combine with fiber laser for optimal automation
The Smart Cell Automatic Loading/Unloading System utilizes a high precision rack & pinion fork lifting transfer; material separation through magnetic air shooting up/down cylinder; optimized transferring mechanism by semi-permanent chain drive system; automatic thickness measurement to prevent material loading error; reduction of cycling time by simultaneous loading & unloading (60 sec./cycle).
- Maximum loading height: 4.75″ (not including the pallet height)
- Material separation: Steel plate separation unit (Air Shooting)
- Maximum material size: 60″ x 120″
- Maximum material thickness: .75″
- LOAD/UNLOAD CYCLE TIME: 60-80 Sec./pallet

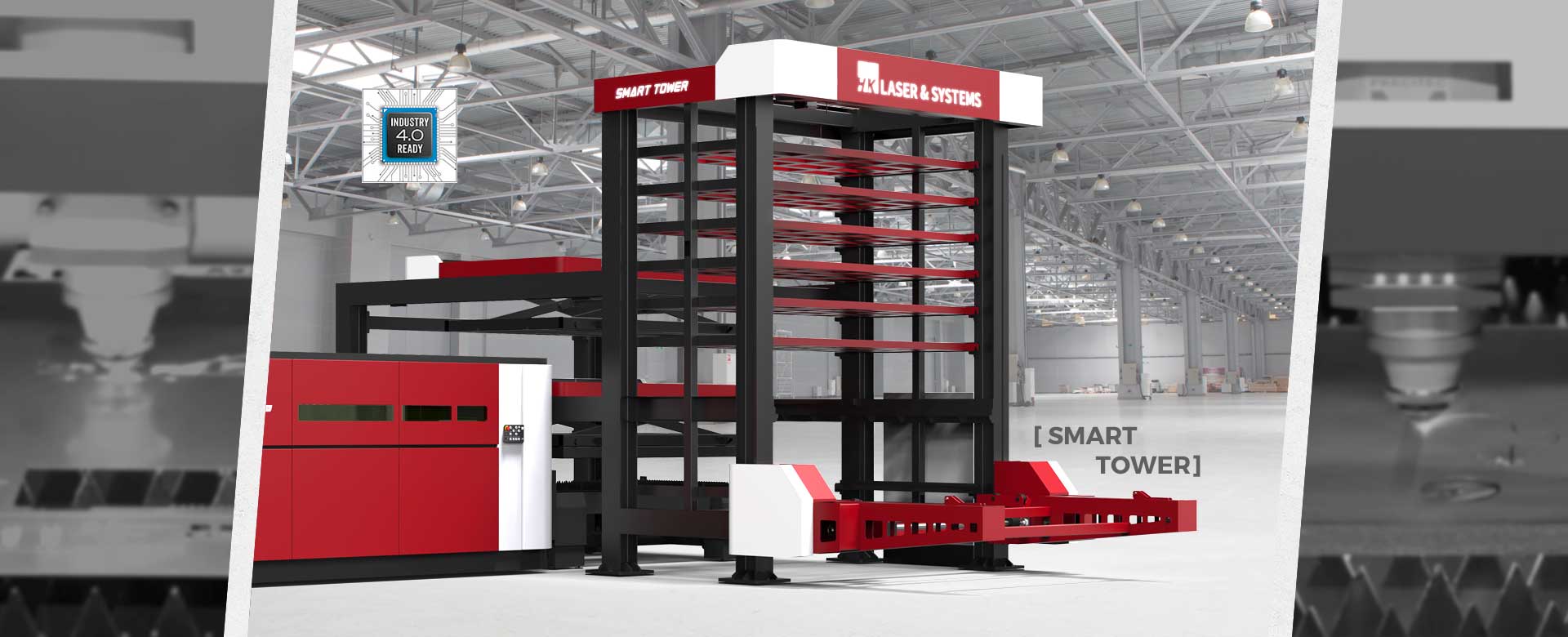

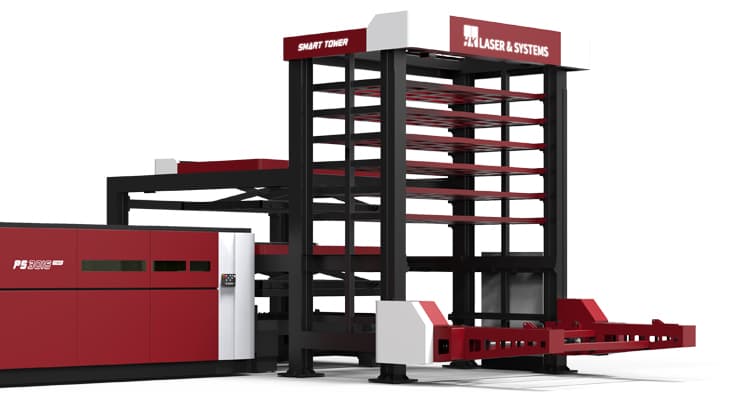

Smart Tower Auto Loading & Unloading System
Combine with fiber laser for even more efficiency
The Smart Tower can store the processed sheet to the tower or unload to the unloading station; material can be stacked directly on tray or with pallet; double forks design for unloading with “Crash Protection Device”; material separation through magnetic air shooting up/down cylinder.
- Max material size: 60″ x 120″.
- Max material thickness: .80″.
- Number of pallets: 8 (Standard).
- Loading weight each pallet: 4,410 lbs.
- Max loading height each shelf: 7.5″.
- Loading speed: 43ft/min.
- TRANSPORT. SPEED: 20ft/min.
