GSS Machinery offers the AMOB MDH 90 series tube bender in multiple configurations.
Starbend Evobend 800 tube bender
GSS Machinery offers the AMOB MDH 60 series tube bender in multiple configurations.
Starbend Evobend 450 Tube Bender

AMOB Pipe & Tube Benders

MDH 90 & 60 Pipe & Tube Benders

Cost-effective Simplicity, Strength and Accuracy

The AMOB MDH series (NC electric pipe and tube benders) is the company’s standard-issue range – simplicity, strength and accuracy are the key features of this extremely cost-effective line. Ideal for prototyping or small to medium projects, MDH are easily adapted to each different industrial and non-industrial situation.



These versatile machines are an easy and obvious choice for those starting up a tube bending or handrail business, or to complement heavy production or prototyping divisions. The MDH series allow for bending complex tube geometries within seconds of programming. Machines from this range are are all equipped with AMOB NC touchscreen easy to operate controls.

GSS Machinery offers Amob electric tube and pipe benders in multiple configurations.

Features

  • Hydraulic mandrel extractor.
  • NC1 or NC2 axis.
  • Hydraulic clamp and pressure die.
  • Easy to operate controls.

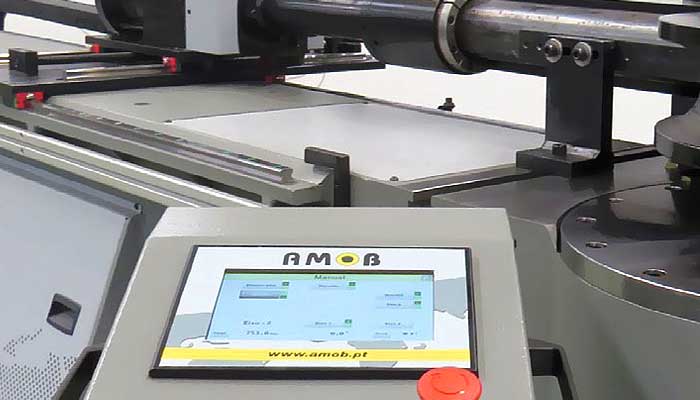

  • AMOB NC touchscreen.
  • 10mm up to 90mm OD.
Gulf States Saw & Machine Co. offers AMOB electric pipe and tube benders such as the MGH 60 in multiple configurations.

MDH 90 Technical Data

  • Max. capacity – 90 x 4 mm
  • Y axis accuracy – ± 0,1
  • Z axis accuracy – ± 0,05
  • Max. Bending Radius – 305 mm
  • Machine Useful Length – 3000 mm
  • Installed Power – 8 KW – 8.25 KW

MDH 60 Technical Data

  • Max. capacity – 60 x 3 mm
  • Y axis accuracy – ± 0,1
  • Z axis accuracy – ± 0,05
  • Max. Bending Radius – 195 mm
  • Machine Useful Length – 3000 mm
  • Installed Power – 6.2 KW – 6.4 KW

Starbend Pipe & Tube Benders

Star 800 & 450 EVOBEND Pipe & Tube Benders

Exclusive Tube Bender Control System

The EVOBEND pipe and tube bending line was created to combine price, quality and design which culminates in the best 3-Axis automation solution. Exclusive tube bender control system; simple to program in LRA with custom import features from CMM’s or text files. With active 3D part simulation. A perfect machine for handrail processing.

Gulf States Saw & Machine Co. offers Hybrid Pipe and Tube Benders such as the Starbend Evobend 800.

Features

  • All essential components manufactured in carbon steel.
  • Primary axis movement driven by brushless motors.
  • Power transmission guaranteed by planetary gearboxes.
  • Bending head overhang for greater flexibility.
  • Absolutely irreversible toggle lock closure.
  • Simple regulation of Shoulder/Clamp opening.
  • Quick connection of the Following block/Roller holder.
  • Predisposition for split die cylinder up/down.
  • Master collet insert for rapid change-out.
  • Programmable mandrel extraction anticipation angle.

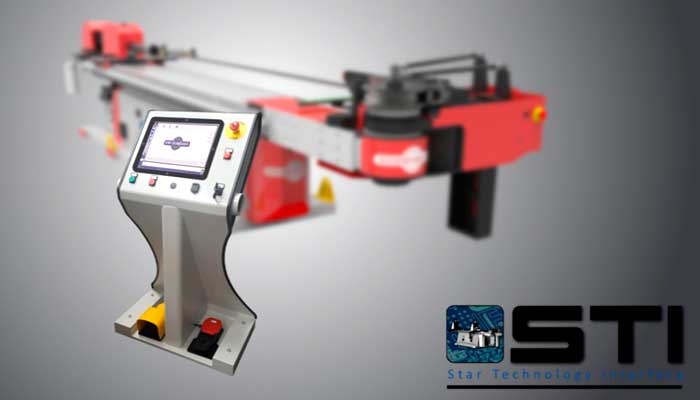

  • Compact console 15” touch screen and S.T.I. interface.
  • Collet push during bending cycle.
  • Push bending and interpolation bending.
  • Interchangable been shaft.
  • Automatic management of different bending styles; closed collet and through collet bending.
Gulf States Saw & Machine Co. offers Hybrid Pipe and Tube Benders such as the Starbend Evobend 450.

800 EVOBEND Technical Data

  • Max tube / mild steel round – 80×5 mm
  • Max bending radius – 320 mm
  • Max push length – 4200 mm
  • Useful length over mandrel – 6000 mm
  • Max bar passage inside the P.O.B. positioner – 76 mm
  • Dimension under the bending head – 515 mm
  • Bending head overhang – 515 mm
  • Bending head interface radius – 200 mm
  • Operating power 3 phase – 400/480 V
  • Operating frequency – 50/60 HZ
  • Approx. weight – 6000kg
  • Bending direction: Left or right
  • Bender dimensions – 1750×7300 H1550 mm

450 EVOBEND Technical Data

  • Max tube / mild steel round – 80×5 mm
  • Max bending radius – 320 mm
  • Max push length – 4200 mm
  • Useful length over mandrel – 6000 mm
  • Max bar passage inside the P.O.B. positioner – 76 mm
  • Dimension under the bending head – 515 mm
  • Bending head overhang – 515 mm
  • Bending head interface radius – 200 mm
  • Operating power 3 phase – 400/480 V
  • Operating frequency – 50/60 HZ
  • Approx. weight – 6000kg
  • Bending direction: Left or right
  • Bender dimensions – 1750×7300 H1550 mm



We go beyond the selling points of our leading edge products

We look to ensure the success of your new purchase by working with you to identify and enhance efficiencies throughout your entire processing line.
Contact us at 877-724-7297, or fill out our web form below.
