Gulf States Saw & Machine Co. offers the NHC Series High Speed Production Circular Cold Saw such as the NHC-160 from Nishijimax in multiple models and configurations.

Nishijimax NHC High Speed Production Circular Cold Saw Machines

Capacities from 1″ to 12″

If you need a saw that will feed a forge or multiple CNC machining centers, our NHC Series High Speed Circular Cold Saw Machines, provided by PMI-Nishijimax, may be what you have been looking for. Production cutting of solid bar stock is now a quick, clean and profitable operation, by incorporating advanced metal cutting technology into our saws we can produce more parts per hour and per blade than any other system.

Standard Features

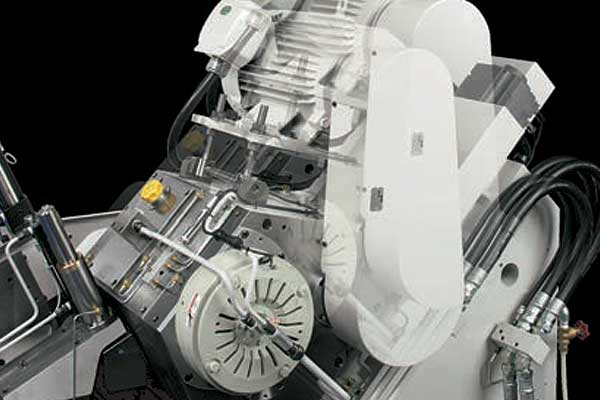

  • Massive Saw head travels on Linear Rails on 45° slant bed design.
  • 6 Point Precision Blade Guides are positioned very close to the work piece.
  • Increased Saw HP with Heavy Duty Reduction Gear Box and Precision Saw Blade Spindle.
  • Servo-driven ball-screw design.
  • Sizer Clamp positioned via AC Servo Drive & Ball Screw.
  • Secure Horizontal & Vertical clamping of the work piece.
  • Automatic Machine Lubrication.
  • Auto loader and bar stocker.

NHC-80 Series

3 inch Cutting Capacity

Gulf States Saw & Machine Co. offers High Speed Circular Cold Saws from Nishijimax such as the NHC 80.

Features

  • Round Maximum – 3.149″
  • Square Maximum – 2.362″
  • Cutting Axis – 45 Degree Slant Type
  • Saw Motor Power – 10.5 HP (7.5 kW)
  • Saw Blade Rpm – 70-200
  • Saw Blade Diameter – 10.75″
  • Cutting Length-Max – 236″+
  • Trim Cut Length-Max – 4″
  • Length Of Bars/Pipes – 12′ – 24′

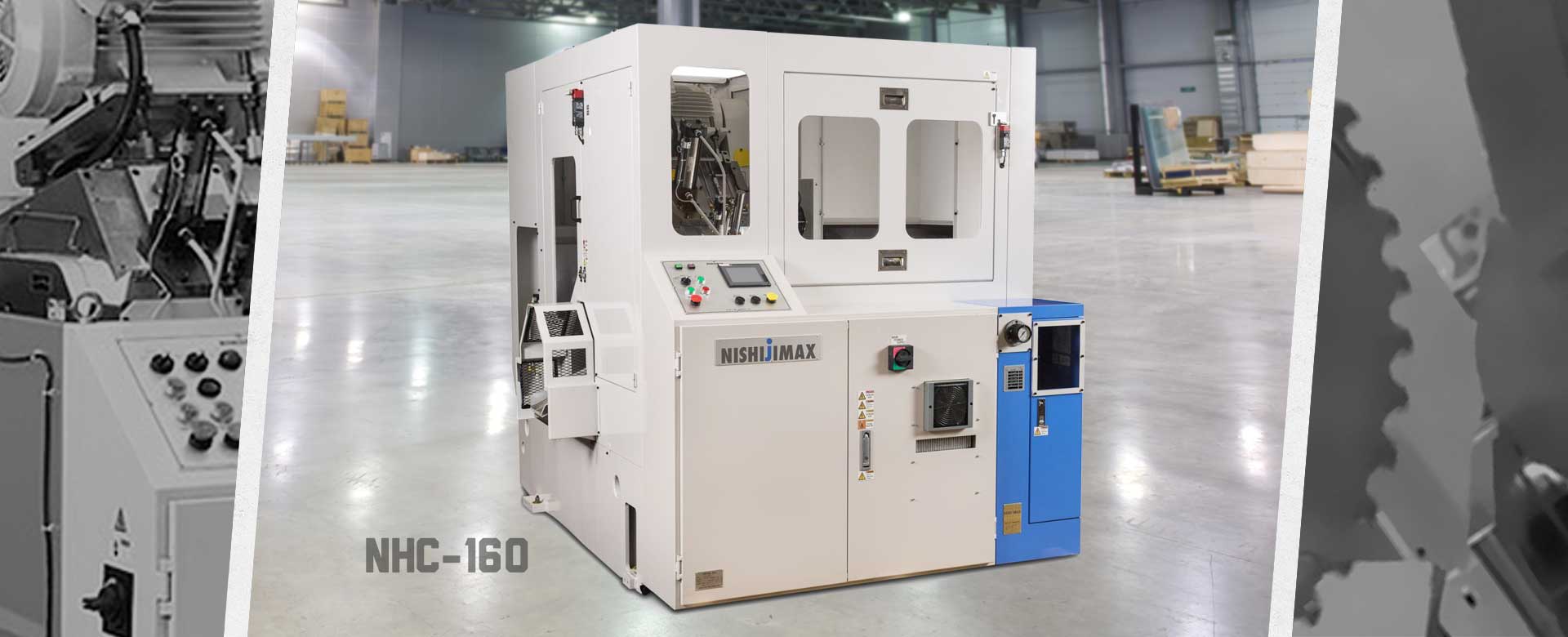

NHC-160 Series

6.29 inch Cutting Capacity

Gulf States Saw & Machine Co. offers High Speed Circular Cold Saws from Nishijimax such as the NHC 160.

Features

  • Round Maximum – 6.29″
  • Square Maximum – 4.3″
  • Cutting Axis – 45 Degree Slant Type
  • Saw Motor Power – 21 HP (15 KW)
  • Saw Blade Rpm – 32-115
  • Saw Blade Diameter – 18″
  • Cutting Length-Max – 236″+
  • Trim Cut Length-Max – 4″
  • Length Of Bars/Pipes – 12′ – 24′

NHC-110 Series

4.33 inch Cutting Capacity

Gulf States Saw & Machine Co. offers High Speed Circular Cold Saws from Nishijimax such as the NHC 110.

Features

  • Round Maximum – 4.33″
  • Square Maximum – 2.91″
  • Cutting Axis – 45 Degree Slant Type
  • Saw Motor Power – 21 HP (15 KW)
  • Saw Blade Rpm – 50-160
  • Saw Blade Diameter – 14.12″
  • Cutting Length-Max – 236″+
  • Trim Cut Length-Max – 4″
  • Length Of Bars/Pipes – 12′ – 24′

NHC-280 Series

11 inch Cutting Capacity

Gulf States Saw & Machine Co. offers High Speed Circular Cold Saws from Nishijimax such as the NHC 280.

Features

  • Round Maximum – 11.02″
  • Square Maximum – 7.87″
  • Cutting Axis – 35 Degree Slant Type
  • Saw Motor Power – 60 HP (45 kW)
  • Saw Blade Rpm – 15-60
  • Saw Blade Diameter – 35.83″
  • Cutting Length-Max – 236″+
  • Trim Cut Length-Max – 4.72″
  • Length Of Bars/Pipes – 12′ – 24′

We offer the complete line of Nishijimax NHC Series Saws – 877-724-7297
