Voortman V845 & V842 Fiber Tube
Laser Cutting Machines
Precision Fiber Tube Laser Cutting for Small Range Tubes to Big Open Profiles
The Voortman V845 and V842 Baseline tube lasers give metal fabricators accurate, efficient fiber laser cutting for round tube, square tube, pipe, and structural profiles. The V845 is built for heavier profiles, H/I beams, and large tube processing, while the V842 is a cost-effective option for small to medium tube and pipe applications.

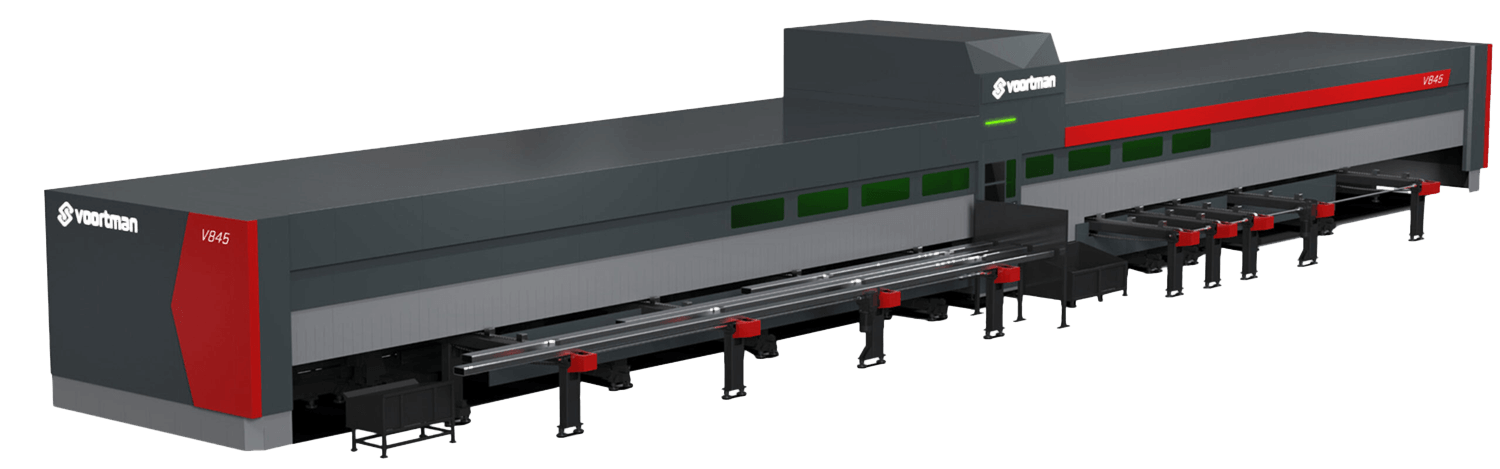

V845 Baseline
Voortman Tube Laser
The V845 is a heavy-duty Voortman Tube Laser. It is a competitively priced pipe and tube laser cutting machine that excels in versatility, handling a wide range of profiles, including H and I beams. Its robust design ensures precise performance for both large and small beams, with cutting power up to 20 kW. The V845 Voortman Baseline Tube Laser delivers consistent, high-quality results for diverse applications, meeting production demands with ease.
Features
V845 Baseline Voortman Tube Laser
- Cutting power up to 20kW
- Competitively priced
- Process a wide range of profiles, shapes & thicknesses
- Backside processing
- Bevel Cutting
- Semi-automatic loading system
- Designed for cutting heavy round tubes and square tubes
- Handles H/I beams with a maximum weight capacity of 2.4 tons
- Adjust clamping force for smaller/thinner profiles with high precision
Specifications
V845 Baseline Voortman Tube Laser

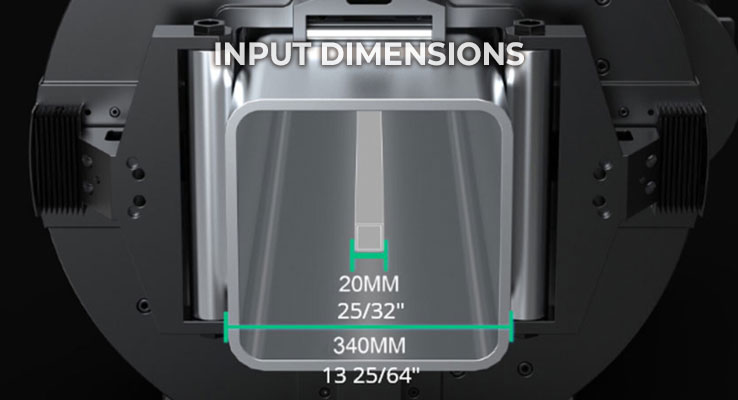

- Processing Window: 1-3/16″ – 3-3/16″ to 13-13/16″ – 25-9/16″
- Max. Total Positioning Weight: 2,650 lbs – 6,600 lbs
- Max. Linear Positioning Weight: 67 lbs/ft – 170 lbs/ft
- Max. Product Length: 20, 30, 40 ft
- Max. Positioning Speed: 147 ft/min
- Laser Power: 6, 12, 20 kW
- Max. Rotational Speed of Chucks: 40 rpm
- Amount of rotating chucks: 3 – 4
The Voortman Tube Laser – High Precision Processing that is Competitively Priced

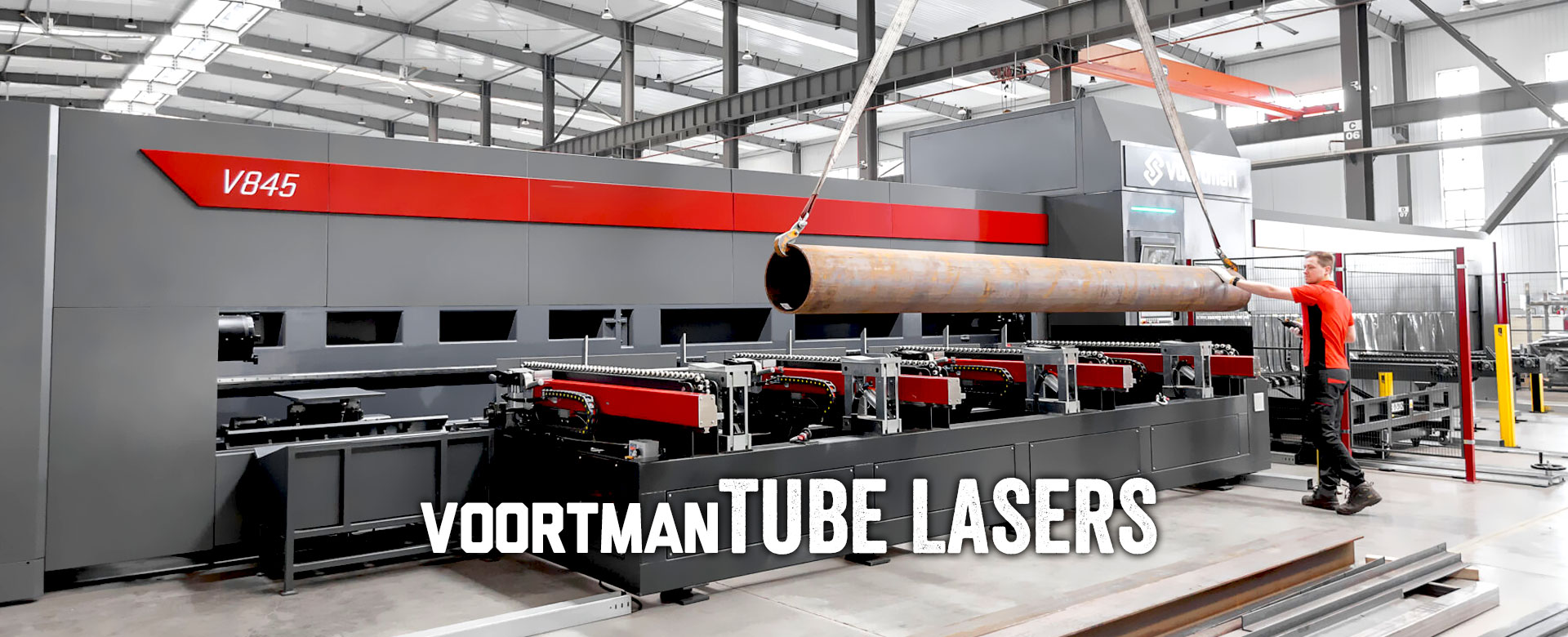

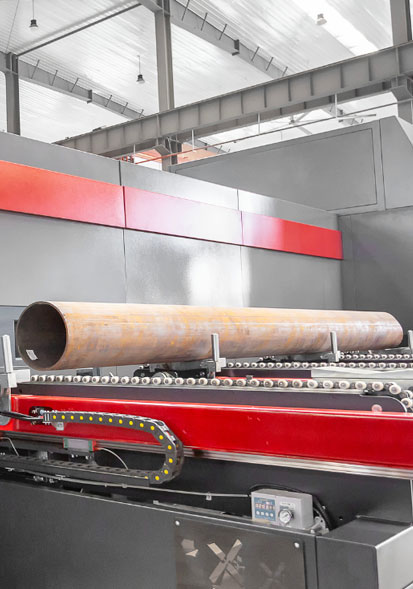

SEMI-AUTOMATIC LOADING SYSTEM
The semi-automatic loading system streamlines profile preparation by lifting entire bundles into the material warehouse. Once manually placed in the loading area the system automatically separates and feeds them into the cutting position.

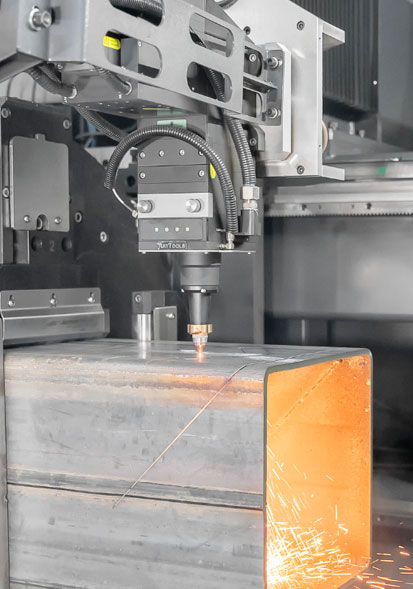

AUTO CENTERING

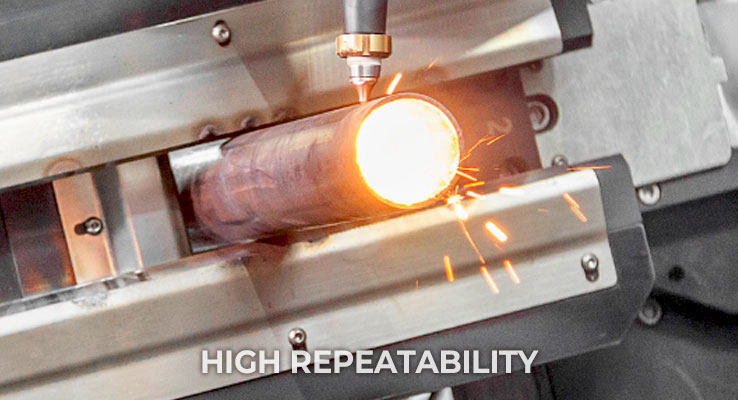

Automatic centering and clamping system for precise support of various profiles. The pneumatic chuck ensures circular precision of +/-0.1 mm, reducing setup time when switching between tube diameters and profiles.

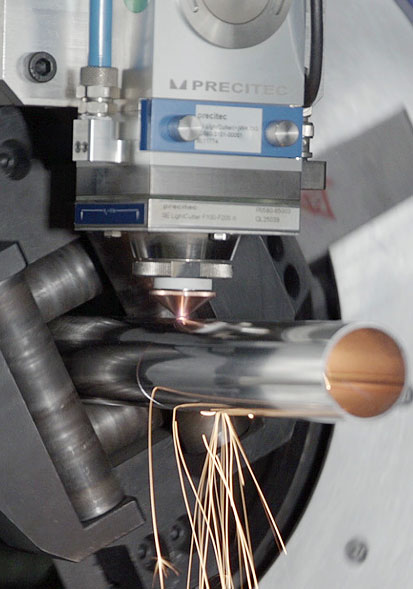

BACKSIDE PROCESSING

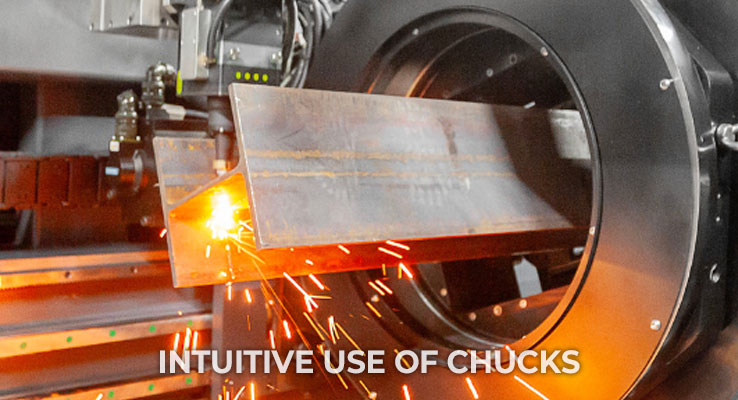

The advanced chuck system also enables backside processing and cutting, boosting productivity and versatility. It securely grips the profile for precise cuts, even when working from both ends.

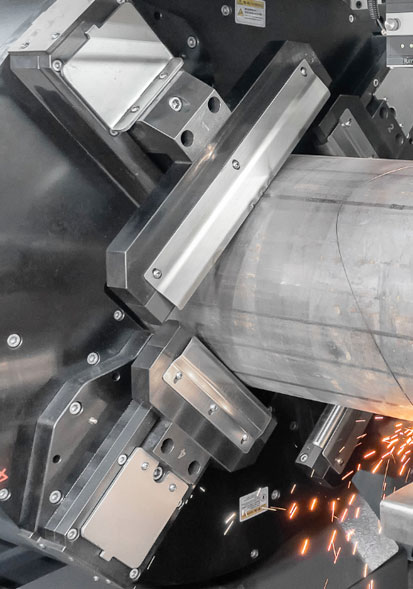

ADJUSTABLE CLAMPING FORCE
Adjustable clamping force is ideal for handling small, thin profiles. It securely grips delicate materials without distortion, ensuring high-quality results and automatically adapts to each profile’s size and thickness.
Which Model Is Right for You?
V845 Baseline
- Best for: Heavy-duty profiles, H/I beams, large tube
- Laser power: 6, 12, 20 kW
- Max prod. length: 20, 30, 40 ft
- Position speed: 147 ft/min
- Ideal buyer: Structural fabricators, heavy steel processors
V842 Baseline
- Best for: Small to medium tubes and round pipe
- Laser power: 3, 6, 12 kW
- Max prod. length: 20, 30, 40 ft
- Position speed: 320 ft/min
- Ideal buyer: Tube/pipe shops needing entry-level fiber laser cutting

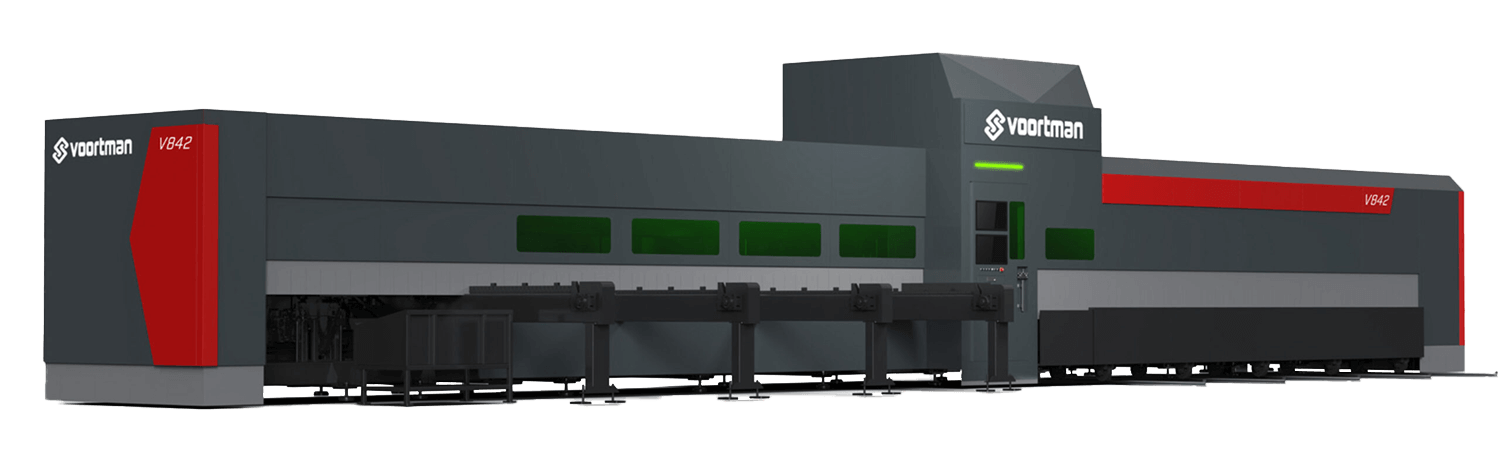

V842 Baseline
Voortman Tube Laser

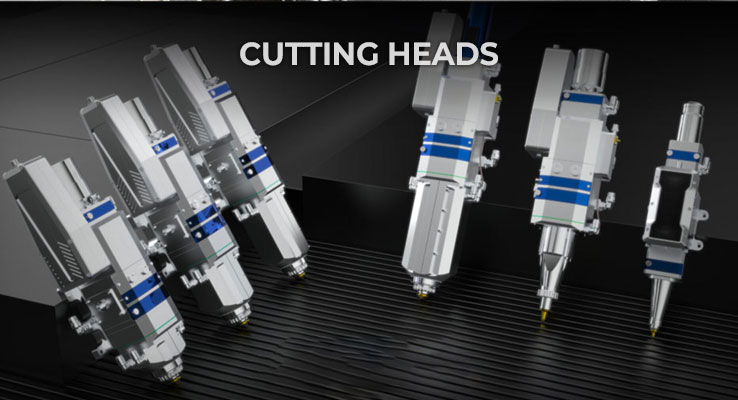

The V842 Baseline is a Voortman Tube Laser designed for the cutting of small to medium range tubes. It is an entry level, competitively priced, fiber laser tube cutting machine that features an automatic centering and clamping system. The V842 Baseline cutting head combines precision and efficiency with an innovative cooling system that protects components and extends operation time.
Features
V842 Baseline Voortman Tube Laser
- Cutting power up to 20kW
- Competitively priced
- Cutting power is configurable to meet specific needs
- Backside processing
- Semi-automatic loading system
- Perfect for laser cutting small to medium-sized tubes and round pipes
- Efficiently produces production-ready parts
- Automatic centering and clamping system ensures alignment and precision for accurate cuts
Specifications
V842 Baseline Voortman Tube Laser
- Processing Window: 13/16″ – 9-7/16″
- Max. Total Positioning Weight: 882 lbs
- Max. Linear Positioning Weight: 30 lbs/ft
- Max. Product Length: 20, 30, 40 ft
- Max. Positioning Speed: 320 ft/min
- Laser Power: 3, 6, 12 kW
- Max. Rotational Speed of Chucks: 100 rpm
- Amount of rotating chucks: 3
Frequently Asked Questions
What is the difference between the Voortman V845 and V842?
The V845 Baseline is best for heavy-duty tube, beam, and structural profile cutting, including H/I beams and larger profiles. The V842 Baseline is best for small-to-medium tube and pipe cutting where speed, accuracy, and cost-effective fiber laser processing are the priority.
Can Voortman tube lasers cut square and round tube?
Yes. Voortman tube lasers can process both round tube and square tube. Depending on the model and configuration, they can also process rectangular profiles, pipe, and structural shapes.
Can the V845 cut H beams and I beams?
Yes. The Voortman V845 is designed to cut H beams and I beams, along with round tubes, square tubes, rectangular profiles, and other structural profiles. This makes it a strong option for structural fabricators and heavy steel processors.
What material lengths can the V845 and V842 process?
Both the V845 Baseline and V842 Baseline can be configured to process material lengths of 20 ft, 30 ft, or 40 ft, depending on the selected machine setup and production requirements.
What laser power options are available?
The Voortman V845 Baseline is available with 6 kW, 12 kW, or 20 kW laser power options. The Voortman V842 Baseline is available with 3 kW, 6 kW, or 12 kW laser power options.
What is backside processing?
Backside processing allows the machine to cut or process the opposite side of the tube or profile without requiring the operator to manually remove, flip, and reload the material. The chuck system grips and repositions the profile so the machine can complete more cuts in one automated workflow. This improves productivity, accuracy, and material utilization.
What is automatic centering and why does it matter?
Automatic centering aligns the tube or profile inside the chuck system before cutting begins. This helps the laser maintain accurate positioning around the material, reduces setup time, and improves cut consistency when switching between different tube sizes, diameters, or profiles. It is especially helpful when processing a mix of material shapes and wall thicknesses.
Is the V842 a good entry-level tube laser?
Yes. The Voortman V842 Baseline is a strong entry-level fiber tube laser for shops that need accurate, efficient cutting of small to medium-sized tubes and round pipe. It offers automatic centering, backside processing, semi-automatic loading, and configurable laser power in a more cost-effective package than a heavy-duty structural profile machine.
Does Gulf States Saw & Machine provide installation, service, or support?
Yes. Gulf States Saw & Machine Co. provides service, support, and maintenance for the machines they sell. We also help customers evaluate the right machine for their material size, production volume, automation needs, and budget. Installation, startup, training, and service details should be confirmed with Gulf States as part of the quote process.
What information is needed to request a quote?
To request a quote, it is helpful to provide your contact name, company name, phone number, email address, city, state, ZIP code, and project details. For the most accurate machine recommendation, include the type of material you process, tube or profile shape, size range, wall thickness, material length, production volume, desired laser power, automation needs, and whether you are considering the V845, V842, or need help choosing between the two.
Need help choosing between the V845 and V842? – 877-724-7297
We can help match the right Voortman tube laser to your material size, production volume, automation needs, and budget.
Call 877-724-7297 or request a quote below.
