HK PS Series Fiber Laser Cutting System

Compact and configurable sheet metal laser cutting system

The PS Series feature an all-new compact design that comes with a high stiffness main frame and a steel cutting bridge that supports a lightweight cutting carriage with a weight reduction of 50% compared to other machine types in the industry.

GSS Machinery offers HK PS3015 Fiber Laser cutting systems.

Features

  • High-stiff main frame that minimizes vibration.
  • Ultralight and high-stiff cutting bridge.
  • Dynamic motion control.
  • Quick piercing that shortens piercing time and improves quality.
  • Optimal thick plate cutting by smart cut.
  • MAX. CUTTING SIZE: Width: 26.25′ | Length: 8.2′

HK Falcon FL3015 Fiber Laser Cutting System

Fiber laser cutting systems designed specifically for metal fabricators

The Falcon FL3015 Corona has a wide open side door for flexible cutting of various sheet sizes with a rotary axis as an option for tube cutting.

GSS Machinery offers HK FL3015 Fiber Laser cutting systems.

Features

  • Wide-open structure with long cutting bridge.
  • Cutting carriage with dual servo motors.
  • Ultralight and high-stiff cutting bridge.
  • Optimal thick plate cutting by smart cut.
  • Laser Mech auto focus fiber cutting head.
  • MAX. CUTTING SIZE: Width: 60″ | Length: 120″

HK Falcon FS3015 Fiber Laser Cutting System

The ultimate value without compromise when it comes to your laser cutting needs

The Falcon FS3015 features a compact design with a front door. A helical rack & pinion drive system is used with synchronized dual servo motors at the gantry. The CNC and fiber laser resonator are built in to the unit itself.

GSS Machinery offers HK FS3015 Fiber Laser cutting systems.

Features

  • 2.5kW ouput.
  • CNC and fiber laser resonator are built in to the unit.
  • Dynamic motion control.
  • Optimal thick plate cutting by smart cut.
  • High-precision & high-quality cutting capability.
  • MAX. CUTTING SIZE: Width: 60″ | Length: 120″.

HK Falcon III Plus FS4015 Fiber Laser Cutting System

Enhance your cutting capability up to 60″ x 160″ sheet size

When it comes for the need to acquire an oversize laser machine in order to cut oversized parts, the main demand is not for expanded width, but for the length, which is mostly up to 144 inches. With the Falcon III Plus FS4015 it is no longer necessary to acquire an oversize laser machine just to cut longer parts.

GSS Machinery offers HK FS4015 Fiber Laser cutting systems.

Features

  • 2.5kW up to 10kW output.
  • Auto focus cutting head.
  • 100% power available from a single laser source.
  • Overall length of the machine is only 40” longer than a regular 5’x10’ fiber laser system.
  • MAX. CUTTING SIZE: Width: 60″ | Length: 160″.

Automated Loading Systems

Smart Cell Auto Loading & Unloading

Combine with fiber laser for optimal automation

The Smart Cell Automatic Loading/Unloading System utilizes a high precision rack & pinion fork lifting transfer; material separation through magnetic air shooting up/down cylinder; optimized transferring mechanism by semi-permanent chain drive system; automatic thickness measurement to prevent material loading error; reduction of cycling time by simultaneous loading & unloading (60 sec./cycle).

GSS Machinery offers the HK Smart Cell.

Features

  • Maximum loading height: 4.75″ (not including the pallet height)
  • Material separation: Steel plate separation unit (Air Shooting)
  • Maximum material size: 60″ x 120″
  • Maximum material thickness: .75″
  • LOAD/UNLOAD CYCLE TIME: 60-80 Sec./pallet

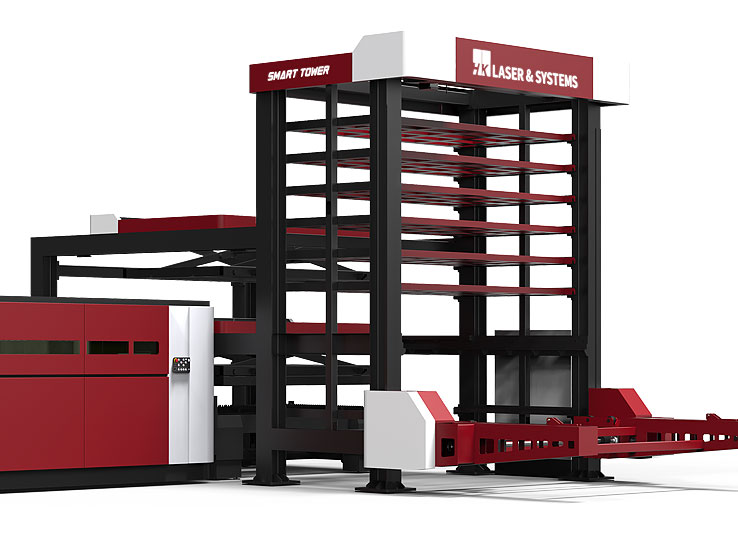

Smart Tower Auto Loading & Unloading

Combine with fiber laser for even more efficiency

The Smart Tower can store the processed sheet to the tower or unload to the unloading station; material can be stacked directly on tray or with pallet; double forks design for unloading with “Crash Protection Device”; material separation through magnetic air shooting up/down cylinder.

GSS Machinery offers the HK Smart Tower.

Features

  • Max material size: 60″ x 120″.
  • Max material thickness: .80″.
  • Number of pallets: 8 (Standard).
  • Loading weight each pallet: 4,410 lbs.
  • Max loading height each shelf: 7.5″.
  • Loading speed: 43ft/min.
  • TRANSPORT. SPEED: 20ft/min.



We go beyond the selling points of our leading edge products

We look to ensure the success of your new purchase by working with you to identify and enhance efficiencies throughout your entire processing line.
