Piranha Single Operator and Dual Operator Iron Worker Machines
Piranha Single Operator Ironworkers
Piranha P-50 Ironworker
A solid 50 ton entry-level hydraulic ironworker
The Piranha P-50 ironworker machine is a solid 50 ton entry-level hydraulic ironworker that possesses industry leading cycle times, urethane strippers, an integrated notching station and convenient work height and visibility for all stations.
Piranha P-65 Ironworker
The most popular of the Megafab Piranha models
The Piranha P-65 ironworker machine is a 65 ton hydraulic ironworker that is one of the most popular of the Megafab Piranha models. Standard features include a urethane stripper attachment, automatic urethane hold-downs, direct line of sight, flat bar shear, angle shear, a coper notcher and quick change tooling.
Piranha P-90 Ironworker
More standard workstations than any other ironworker in its class
The Piranha P-90 ironworker machine is a 90 ton hydraulic ironworker that has more standard workstations than any other ironworker in its class. The P-90 has a dovetail slide, a footswitch that offers full electrical control, no-slug shearing, and integrated coper/notcher station that outperforms any ironworker in the industry.
Piranha P-110 Ironworker
The second most powerful model in the Megafab Piranha line-up
The Piranha P-110 ironworker machine is a 110 ton hydraulic ironworker that is the second most powerful model in the Megafab Piranha line-up. It is able to consistently perform in heavy applications and possesses all of the same features as the P-90. A true metal fabrication workhorse.
Piranha P-140 Ironworker
The most powerful model in the Megafab Piranha line-up
The Piranha P-140 ironworker machine is a 140 ton hydraulic ironworker that is the most powerful model in the Megafab Piranha line-up. It’s power is matched by its consistent productivity in shearing, notching, bending and punching and can easily handle multiple heavy applications in a timely and efficient manner.
Piranha Dual Operator Ironworkers
Piranha PII-88 Dual Operator Ironworker
Controls can be operated independently of each other
The Piranha PII-88 ironworker machine is an 88 ton hydraulic ironworker with dual-operator controls for the punch station and shear/coper stations which can be operated independently of each other. The large punch station has a 24″ plate shear capacity and an unlimited range of standard attachments and special tooling.
Piranha PII-140 Dual Operator Ironworker
Foot pedal and joystick controls
The Piranha Model PII-140 Dual Operator Ironworker has dual-operator electric controls (foot pedal and joystick) for the punch stations and shear/coper stations. The PII-140 is one of the most powerful and efficient ironworkers in the industry with the added benefit of increased productivity through dual operation.
Single and Dual Operator Features
- Clear line of sight of the plate and angle shear.
- Quick and easy punch end tool changes.

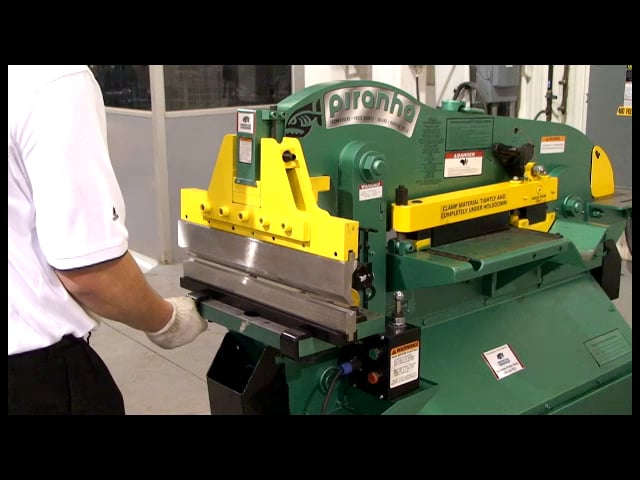

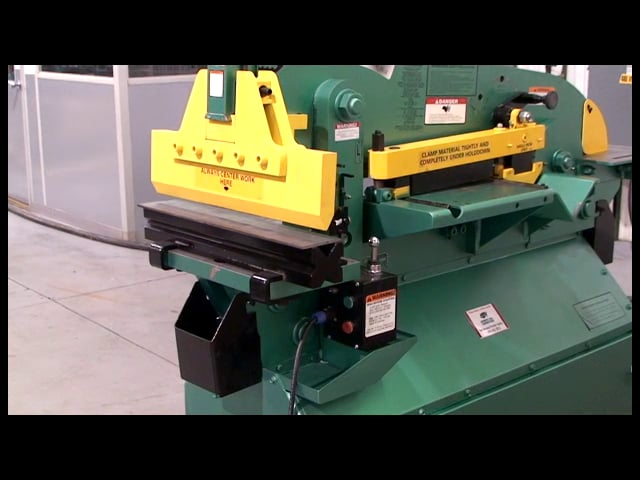

- Large selection of optional accessories.

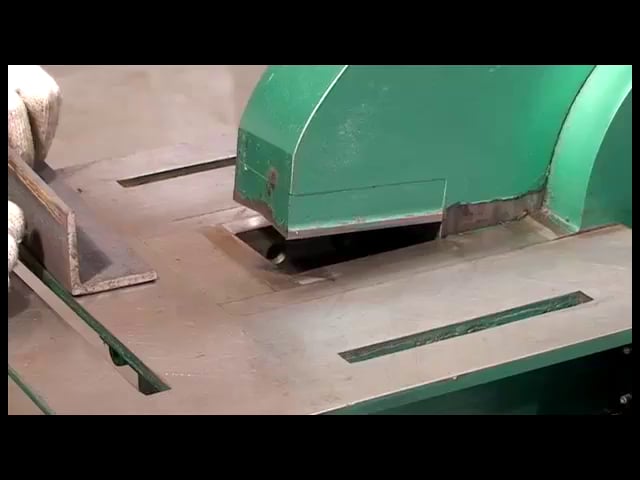

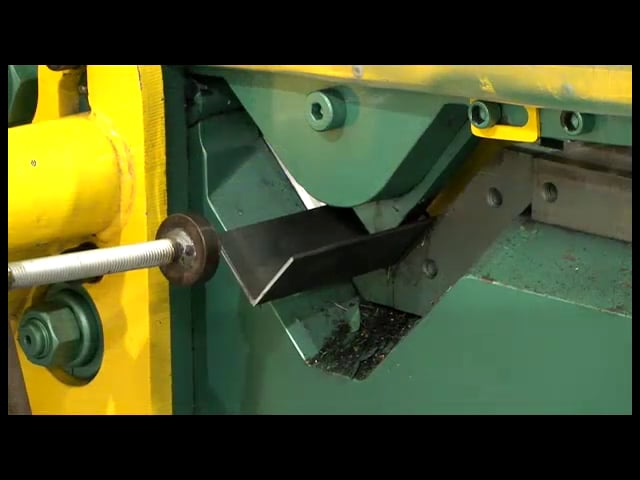

- Angle shear takes no slug.

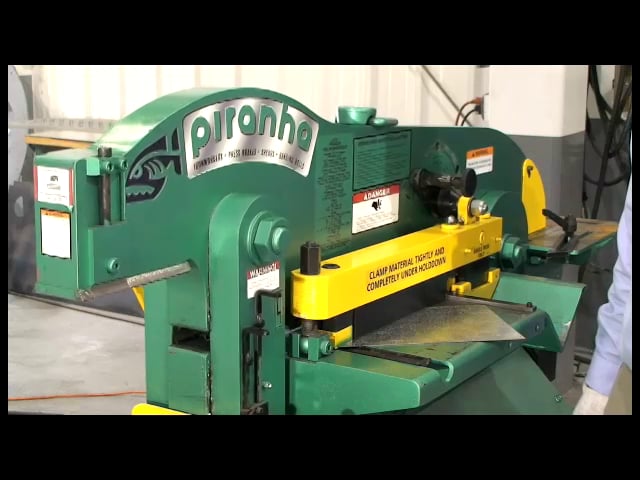

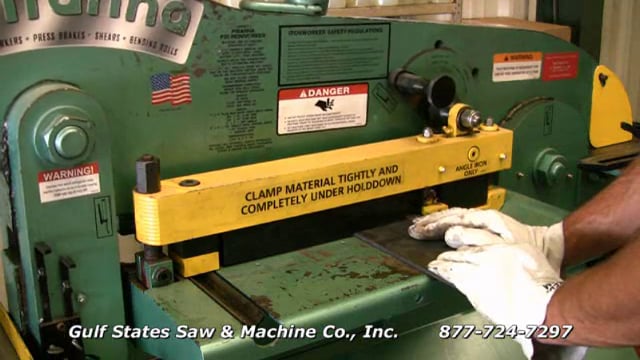

- Automatic shearing clamp.

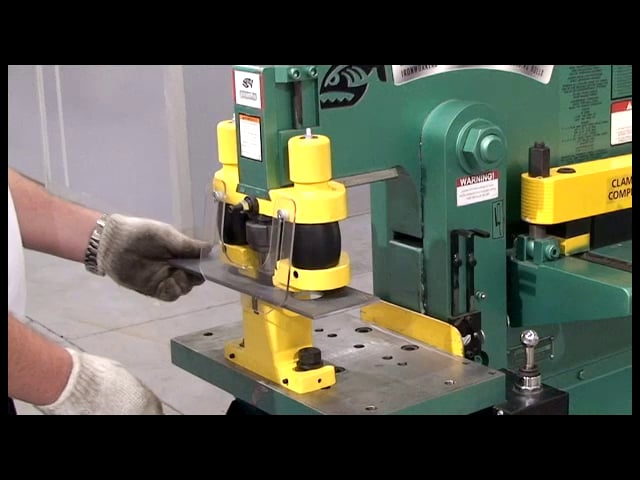

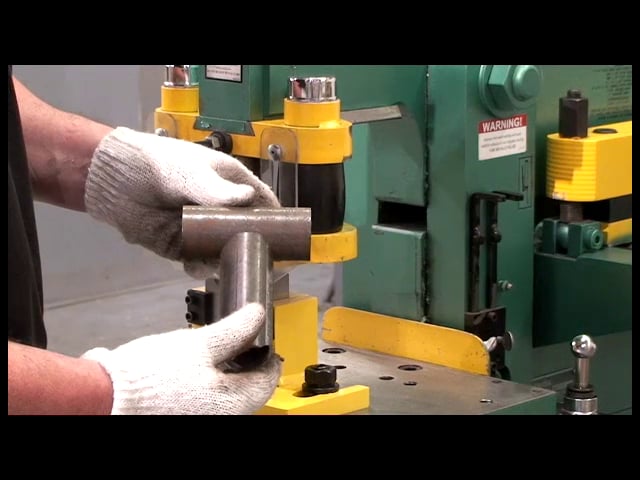

- The original Urethane Stripper.
- Does not distort plate when punching multiple holes.
- Inexpensive punch and die replacement.
- The best rear notcher in the industry.
- Rexroth/Vickers Hydraulics.
- Square D switch gear.
Call Us For More Information and Details – 877-724-7297
Looking for the right ironworker for your needs? – 877-724-7297
We are the ONLY Authorized Distributor of Piranha Iron Workers in Alabama, Florida, Georgia, Kentucky, Louisiana, Mississippi, North & South Carolina, Tennessee and Virginia Contact us at 877-724-7297, or fill out our web form below.
| PII-88 | PII-140 | |
|---|---|---|
| Punch Hole Size (max. material) Max. Hole Size (material) |
88 Tons 1-1/16" (1") 5" (3/16") |
140 Tons 1-3/8" (1-1/4") 5" (5/16") |
| Plate Shear * w/ fixed hold down |
24" Long 3/4" x 8" 5/8" x 1/2" 1/4" x 24" |
20-1/2" Long 1" x 14" 3/4" x 18" 1/2" x 20" |
| Angle Shear ** w/ special blade |
5" x 5" x 3/8" 4" x 4" x 1/2" |
6" x 6" x 5/8" |
| Bar Shear Round (min. to max.) Square (min. to max.) |
1/4" to 1-1/2" 1/2" to 1" |
1/2" to 2" 1/2" to 1-3/8" |
| Copper Notcher (tons) (max.) |
56 2-3/4" x 4" x 1/4" |
95 4" x 6" x 3/8" |
| Motor Std. 230/460 3 ph. 1800 RPM Opt. Phase & Voltage Available |
10 HP 3 PH. | 20 HP 3 PH. |
| Weight (net) Lbs. Approx. |
4,700 | 11,930 |
| P-50 | P-65 | P-90 | P-110 | P-140 | |
|---|---|---|---|---|---|
| Punch Hole Size (max. material) Max. Hole Size (material) |
50 Tons 1-3/16" (3/4") 3" (3/16") |
60 Tons 1-1/16" (3/4") 5" (1/8") |
90 Tons 1-1/8" (1") 5" (3/16") |
110 Tons 1-7/16" (1") 5" (1/4") |
140 Tons 1-3/4" (1") 5" (5/16") |
| Plate Shear * w/ fixed hold down |
13" Long 3/4" x 6" 1/2" x 10" 3/8" x 12" 1/4" x 13" |
15-1/2" Long 3/4" x 10" 5/8" x 15" |
18" Long 1" x 8" 3/4" x 12" 1/2" x 18" |
20-1/2" Long 1" x 12" 3/4" x 18" 1/2" x 20" |
20-1/2" Long 1" x 14" 3/4" x 18" 1/2" x 20" |
| Angle Shear ** w/ special blade |
3" x 3" x 3/8" 3-1/2" x 3-1/2" x 5/16" |
5" x 5" x 3/8" 4" x 4" x 1/2" |
5" x 5" x 1/2" | 6" x 6" x 5/8" | 6" x 6" x 5/8" |
| Bar Shear Round (min. to max.) Square (min. to max.) |
1/4" to 1-3/8" 1/2" to 1" |
1/4" to 1-1/2" 1/2" to 1" |
1/2" to 2" 1/2" to 1-3/8" |
1/2" to 2" 1/2" to 1-3/8" |
1/2" to 2" 1/2" to 1-3/8" |
| Copper Notcher (tons) (max.) |
40 2-1/4" x 3" x 1/4" |
56 2-3/4" x 4" x 1/4" |
75 3-1/2" x 5" x 3/8" |
75 3-1/2" x 5" x 3/8" |
75 3-1/2" x 5" x 3/8" |
| Motor Std. 230/460 3 ph. 1800 RPM Opt. Phase & Voltage Available |
7.5 HP 3 PH. | 7.5 HP 3 PH. | 10 HP 3 PH. | 10 HP 3 PH. | 15 HP 3 PH. |
| Weight (net) Lbs. Approx. |
1700 | 2600 | 4250 | 5800 | 6200 |
